Cel-Fi Tools

The Cel-Fi COMPASS is an RF site utility that enables installers and integrators to install and optimize Cel-Fi equipment. This will include Cel-Fi public safety boosters and the Cel-Fi QUATRA that previously required an internet connection to be commissioned and managed.

• Handheld RF installation tool
• Cel-Fi WAVE PRO app is the user-interface (see details below)
• Deep 3G/4G LTE service scanner
• 698 – 2700 MHz
• Rugged rubberized exo-skeleton
• FDD/TDD Support
• Battery-powered
• SMA connectors

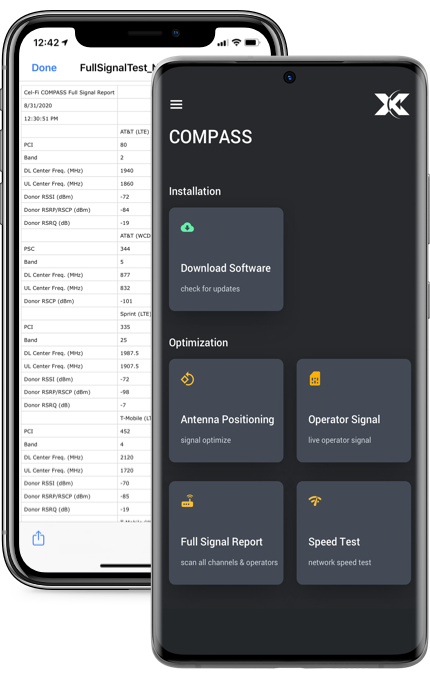

The Cel-Fi COMPASS is controlled by the Cel-Fi WAVE PRO app via Bluetooth LE. The Cel-Fi COMPASS can also connect via Ethernet to the Cel-FI QUATRA Network Unit. The app is free to download from the iOS App Store and Android Play Store.

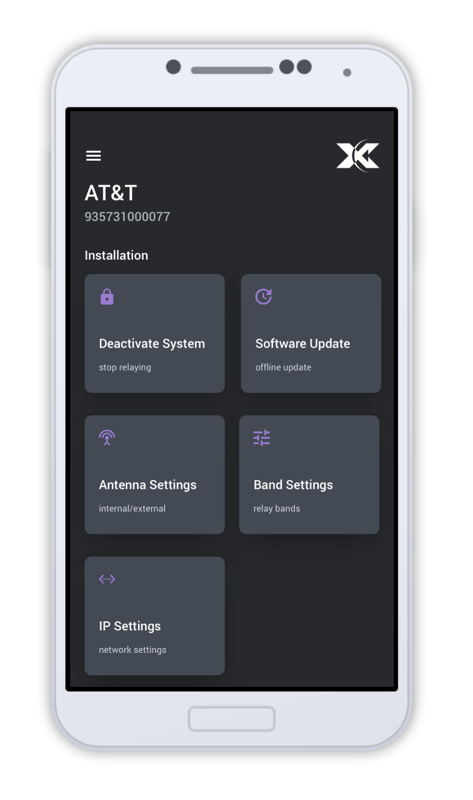

• Installation Features (when connected to a Cel-Fi QUATRA):
• Activate/Deactivate the system
• Update software

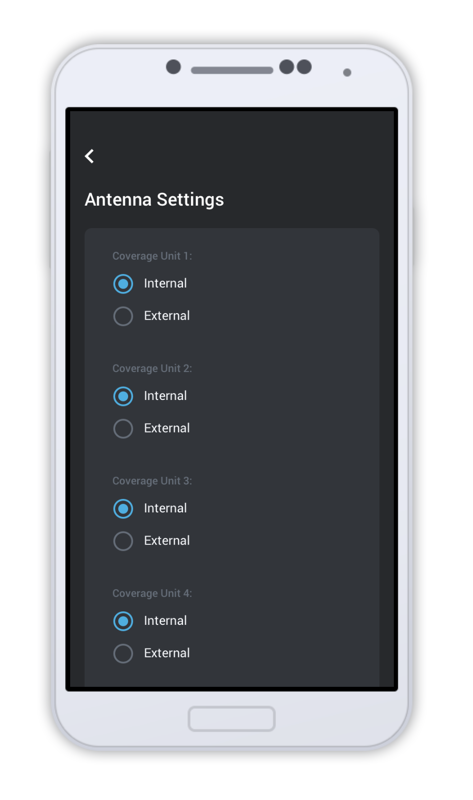

• Change Antenna Settings
• Set the bands to relay
• Change IP Settings
• Optimization Features:

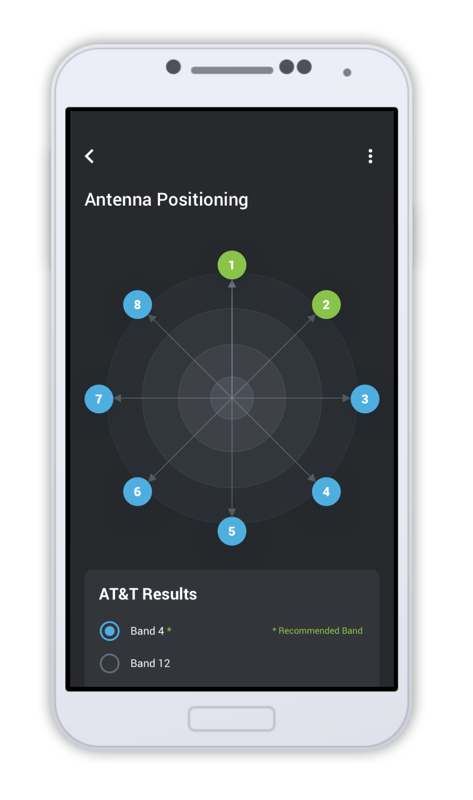

• Antenna Position test (when connected to a Directional Antenna with the Cel-Fi Antenna Mount)

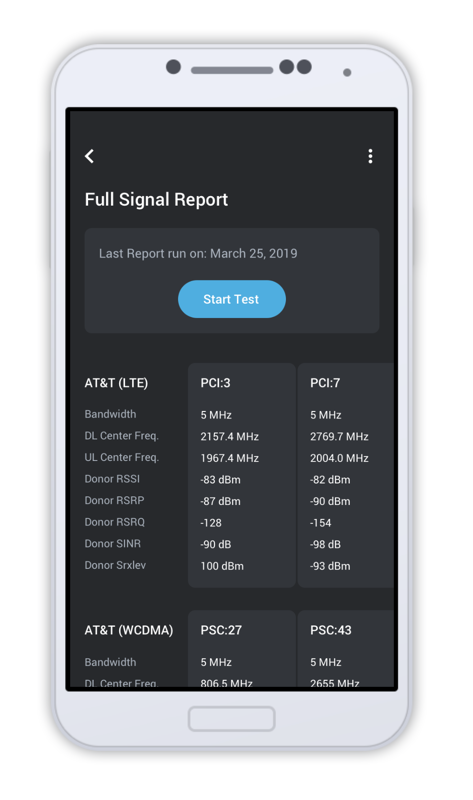

• Full Signal Report (when connected to an Antenna)
• Serving Cell Report (when connected to an Antenna)

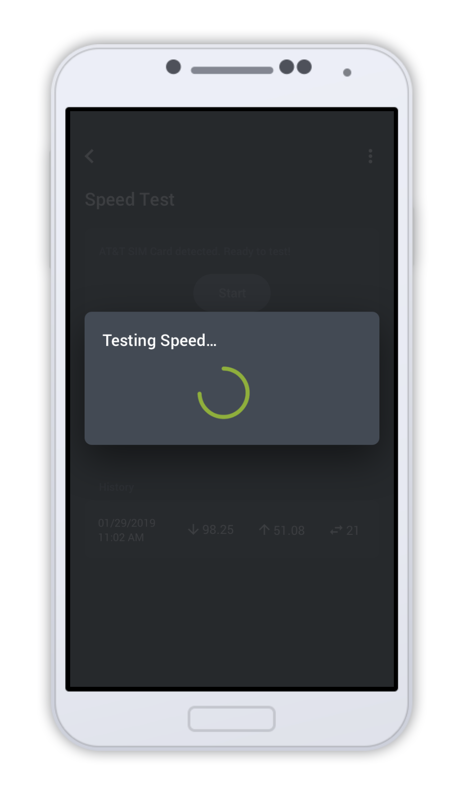

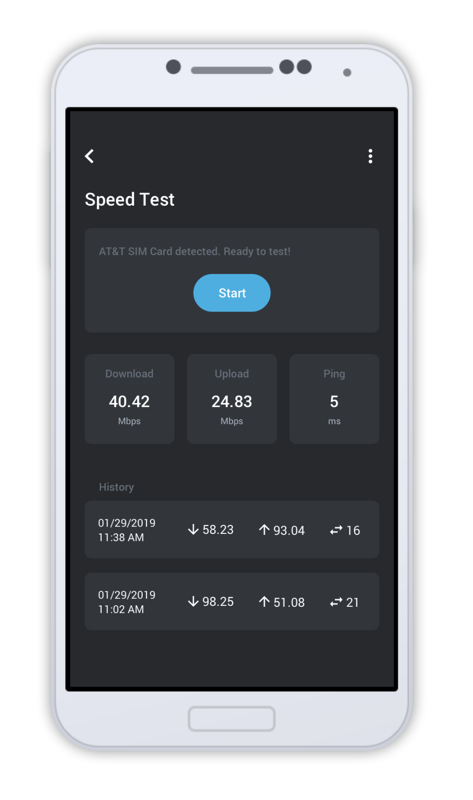

• Speed Test
