CEL-FI QUATRA EVO

One or Two Operator
Cellular Coverage Solution

Regions: Global
RoW Bands: 1, 3, 7, 8, 20, 40* (*Port A Only)
Americas Bands: 2, 4, 5, 12, 13, 25

Designed for enterprises to easily solve cellular coverage challenges, CEL-FI QUATRA EVO is the right choice for places like retail stores, schools, hotels, and healthcare facilities that need to improve indoor signal coverage for one or two operators. Suitable replacement for both QUATRA 1000 and QUATRA 2000.

CEL-FI QUATRA EVO (RoW) Pictured

Enterprise Active DAS Hybrid

Coverage Made Easy

This one or two operator / two-port solution has many of the features of our flagship, four-port QUATRA 4000 systems including:

  • Scalable all-digital architecture
  • Flexible configuration
  • IntelliBoost technology with the best echo cancellation, gain, and coverage footprint in the industry
  • 3G/4G/5G
  • Support for up to Six (6) Coverage Units (CUs)
  • Compatability with optional fiber hub for even more coverage options (up to 12 CUs)
  • Use of category cabling and PoE
  • Hassle-free installation with minimal disruption to operations

Two Configurable Ports

Single-operator Mode
In single-operator mode, connect a single donor signal to both ports to support four bands from same carrier.

Dual-operator Mode
In dual-operator mode, connect a different donor antenna to each port to support two bands from each operator.

Either mode will provide full, reliable coverage throughout the building. Proprietary technology ensures devices are connected to the best available operator bands to provide optimal connectivity for end users.

System Components

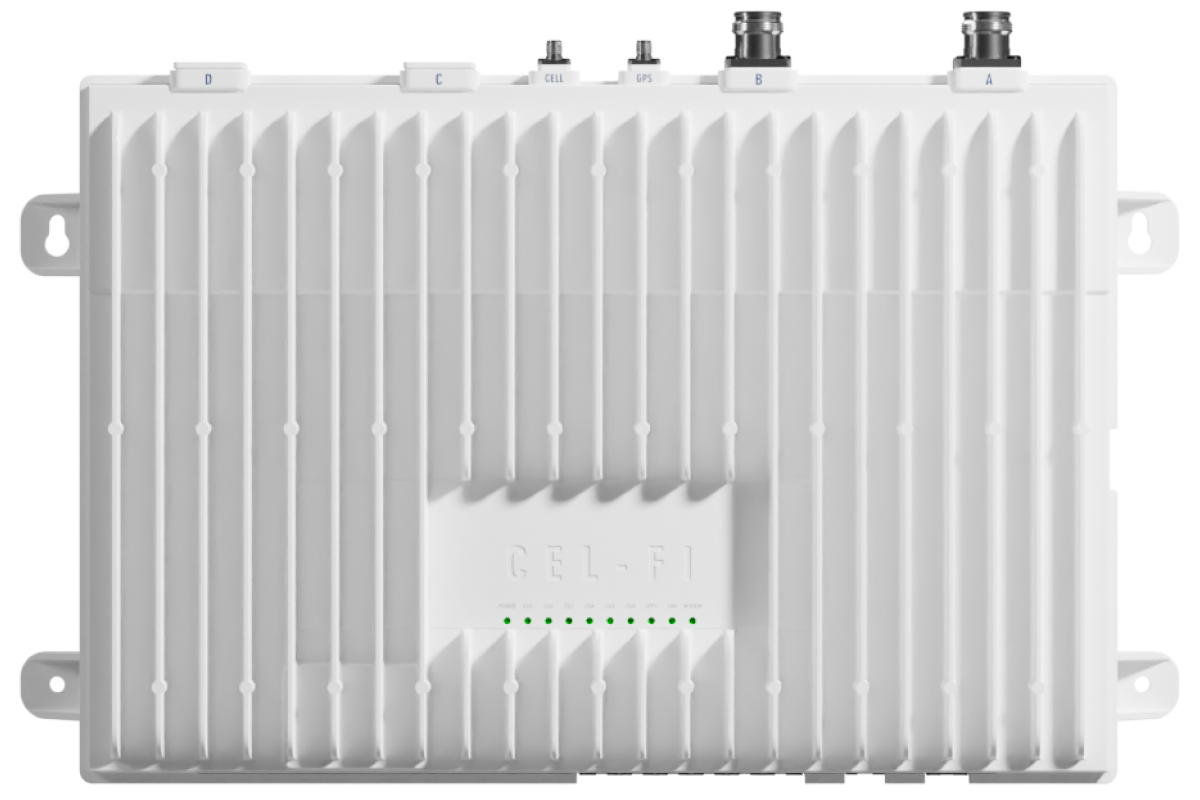

QUATRA EVO Network Unit

The Network Unit (NU) is the hub of the system. Each NU works with one to six Coverage Units (CU) for maximum scalability and design flexibility.

  • Receives donor signal(s) for the system
  • Provides power and distributes donor signal(s) to CUs (up to six)
  • Connects via Ethernet or LTE Modem to the Nextivity WAVE Platform for remote monitoring and management

Model Numbers:
RoW (non-U.S.): Q42-E9CNU
Americas: Q42-Z1CNU

QUATRA EVO Coverage Unit

The Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power over Ethernet (PoE) for up to six CUs.

  • Distributes signal across the coverage area inside the building (up to six per Network Unit)
  • Power delivered by Power Over Ethernet from the NU
  • Self-configuring and self-optimizing
  • CEL-FI QUATRA EVO CU is only compatible with CEL-FI QUATRA EVO NU

Model Numbers:
RoW (non-U.S.): Q41-EXCU-2
Americas: Q41-BXCU

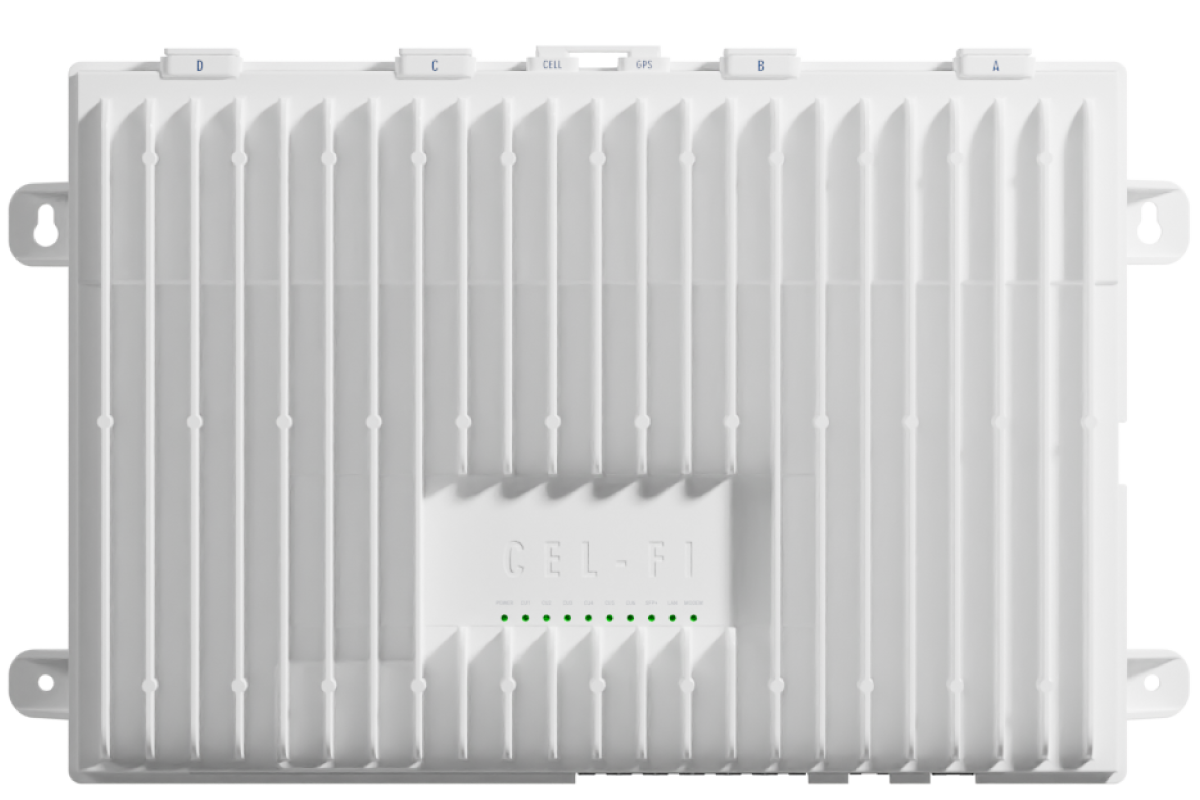

QUATRA EVO Fiber Hub (Optional)

CEL-FI QUATRA EVO Fiber Hub expands the Network Unit capacity from six to up to twelve Coverage Units. The fiber hub can be installed 1.24 miles (2.0 km) away from the NU to cover large spaces while maintaining the same signal quality throughout the system.

  • Donor source over fiber
  • Ofcom and ComReg Approved and FCC certified
  • SFP+ module not included

Model Numbers:
RoW (non-U.S.): Q40-E9FNU
Americas: Q40-Z1FNU

About the CEL-FI QUATRA EVO

CEL-FI QUATRA EVO

In-Building Cellular Coverage Solution

Solving cellular coverage challenges for enterprise environments, CEL-FI QUATRA EVO is an active DAS hybrid that offers uniform, high-quality cellular signal throughout any building. As an all-digital solution, QUATRA EVO utilizes category cabling for RF and Power-over-Ethernet architecture to deliver industry-leading signal gain and scalability. In addition to unmatched performance, this cost-effective, carrier-grade system offers fiber expansion capabilities to scale up your coverage area and can be installed within days. QUATRA EVO is also carrier approved and unconditionally network safe.

Features and benefits include:

  • Scalable all-digital active DAS hybrid for enterprise environments
  • Flexible to configure for single or dual operator server application
  • Multi-carrier signal booster for 3G, 4G, and 5G with industry-leading signal gain up to 100 dB
  • Carrier approved and unconditionally network safe
  • Lossless RF signal and Power-over-Ethernet (PoE) distribution with easy-to-install category cable architecture
  • Site installation flexibility with operator specific donor antenna or small cell signal source
  • Remotely monitor and configure with Nextivity WAVE Portal cloud management
QUATRA EVO Bands (RoW)
BandsDownlink (MHz)Uplink (MHz)Technology/BandwidthUplink Power (dBm)Downlink Power (dBm)
12110-21701920-19805G/4G/3G/20 MHz2220
31805-18801710-17855G/4G/3G/20 MHz2220
72620-26902500-25705G/4G/3G/20 MHz2220
8925-960880-9155G/4G/3G/2G/15 MHz2020
20791-821832-8625G/4G/3G/10 MHz2020
40*2300-23902300-23905G/4G/3G/20 MHz2220
*Port A only
Power (NU only)
Input Voltage90-305V
Input Current2.45 A
Power Consumption480 W max.
Power CableType C (EU) or Type I (AUS) or Type G (UK) to IEC C13
Power Supply Cable18 AWG
Power Supply Cable Length6 ft (1.8 m)
Coverage Unit PowerPoE+ per IEEE 802.3at
Environmental
Operating Temperature32 to 104 °F (0 to 40 °C)
Storage Temperature-31 to 158 °F (-35 to 70 °C)
Heat DissipationPassive Convection
Surface Temperature111°F (44 °C) max. at ambient
Non-condensing Humidity0 to 95%
Ingress Protection RatingIPX0
Coverage Unit Interface
Server Antenna RF Connector4.3-10 (f)
NU Connectivity2x RJ45
Status LED (Power)Bi-Color Green/Red
Status LED (NU Link/Cable Link)Green
Factory Debug OnlyUSB 2.0 Micro-B

QUATRA EVO Bands (U.S.)

BandsNetwork Unit PortDownlink (MHz)Uplink (MHz)Technology/BandwidthUplink Power (dBm)
2A & C1930-19901850-19105G/4G/20 MHz22
4A & C2110-21551710-17555G/4G/20 MHz22
5A869-894824-8495G/4G/HSPA/20 MHz20
12A729-746699-7165G/4G/10 MHz20
13C746-756777-7875G/4G/10 MHz20
25A & C1930-19951850-19155G/4G/20 MHz22
Power (NU only)
Input Voltage100-240 V
Input Current3.5 A
Power Consumption321.3 W max.
Power CableType B (US) to IEC C13
Power Supply Cable18 AWG
Power Supply Cable Length6 ft (1.8m)
Coverage Unit PowerPoE+ per IEEE 802.3at
Environmental
Operating Temperature32 to 104 °F (0 to 40 °C)
Storage Temperature-31 to 158 °F (-35 to 70 °C)
Heat DissipationPassive Convection
Surface Temperature111°F (44 °C) max. at ambient
Non-condensing Humidity0 to 95%
Ingress Protection RatingIPX0
Coverage Unit Interface
Server Antenna RF ConnectorN-type (f)
NU Connectivity2x RJ45
Status LED (Power)Bi-Color Green/Red
Status LED (NU Link/Cable Link)Green
Factory Debug OnlyUSB 2.0 Micro-B
