COMPASS XR

Scanning receiver tool for site survey & CEL-FI installation and testing.

Buy

Available globally

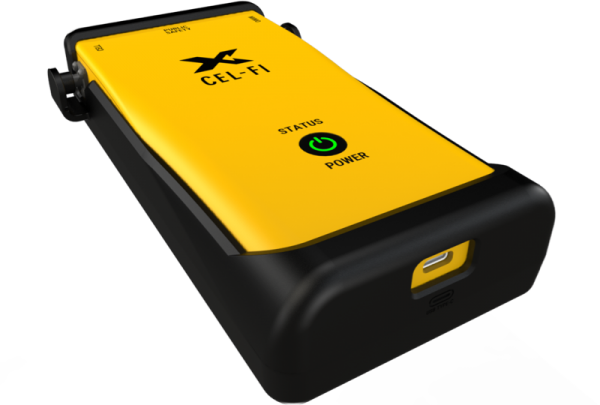

The COMPASS XR scanning receiver is the complete solution to enable integrators to install and optimize CEL-FI cellular and SHIELD public safety coverage systems. A convenient tool in a lightweight and portable package, it can be used globally to deploy and verify multiple technologies, including 5G New Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.

Key Features

Easily perform grid tests and site surveys with portable, handheld RF scanner
Ideal for deployment of CEL-FI QUATRA cellular & RED public safety systems
Single tool for a wide variety of networks with deep 5G-NR/4G-LTE/CBRS/FirstNet/LMR service scanner
Supports operator service bands worldwide with ultra-wide frequency range of 617-5000 MHz

Comes with all necessary accessories, including carrying case, hard storage case, antennas, and RF adapters
Protected from drop, scraps and tumbles with rugged rubberized exoskeleton that provides a comfortable grip
Works with CEL-FI WAVE PRO app (iOS & Android) for all operations, including Full Signal Report export (.CSV) and more

CEL-FI WAVE PRO

The User-Interface for CEL-FI COMPASS XR is CEL-FI WAVE PRO. This free mobile app (iOS and Android) pairs with COMPASS XR, allowing integrators to install and optimize CEL-FI installations without the need for local internet connectivity.

COMPASS XR performs a variety of installation and testing operations using WAVE PRO. Here are three examples:

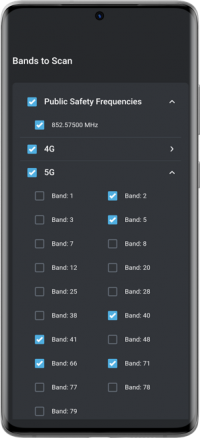

Full Signal Report & Band Selection

Select the technologies, bands, and frequencies needed for quick and efficient scans. COMPASS XR collects all the data needed for the selected bands and saves time by excluding unnecessary frequencies. Get the Full Signal Report at the current location, and the WAVE PRO App saves selections for quick reuse at the next site.

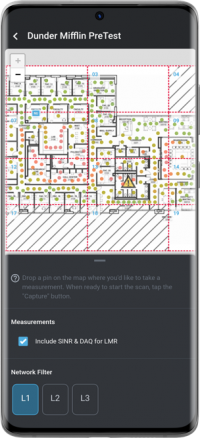

Grid Test

Collect site survey data for public safety or cellular coverage, or even both at the same time, using the WAVE PRO App’s Grid Test. Whether performing an initial site survey or post-install acceptance testing, the COMPASS XR works with the WAVE System to ensure a successful CEL-FI installation.

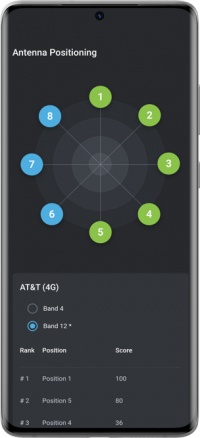

Antenna Positioning

Easily find the ideal position for your donor antenna. Connect the donor antenna to the COMPASS XR and the WAVE PRO App will guide you through the positioning process, automatically calculating the optimal direction to point the antenna.

Download Now

CEL-FI WAVE PRO is available on both smartphones and tablets from the following app stores:

Transportation

The COMPASS XR comes in a complete kit containing the accessories needed to connect the device to CEL-FI equipment, from industrial QUATRA boosters to antennas. The kit also includes these two cases:

Carrying Case

Designed for extended use in a variety of carrying configurations
One-shoulder sling or two-shoulder backpack, straps included
Integrated belt clip
Internal pouch for spare antennas

Hard Case

Rugged carry-on-sized transportation case
Die-cut foam secures all included equipment
Store the COMPASS XR either in its Carrying Case or separately
Extra space for additional cables and connectors

Tech Specs

Model Number

J11-900-100

Compliance

FCC
CE

Dimensions

Height: 41.3 mm (1.6 in)
Width: 119.1 mm (4.7 in)
Length: 204.2 mm (8 in)
Weight (with Batteries): 730g (1.61 lb)

Hardware

Main Processor: Single Board Linux Computer
Battery: Two rechargeable 3500 mAh, 3.7V protected 18650 cells (Included)
Battery Charger: Included, with plug adapter types A, C, G & I

Interfaces

Charging: USB-C
Antenna Ports: SMA Male (Main, MIMO, LMR)
Power Button: LED illuminated button
LED Indicators: 3: Power, Status and Charging
Bluetooth (LE Ver 4.2): 2402 – 2480 MHz
WiFi Access Point: Software upgradeable; enabled only when a Software Upgrade is in progress, while charging.

In the Box

Antenna adaptor: N-type Female to RP-SMA Male
Antenna adaptor: 4.3-10 Female to RP-SMA Male
Whip antenna: 600 MHz – 2.7 GHz
5V, 2A USB charger: Included

Band Support

5G-NR SA & NSA*:
n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79

LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

LTE TDD:
B34/B38/B39/B40/B41/B42/B43/B48

LMR:
758-775 / 851-861 MHz

*5G NSA (Non-Standalone) scans are best-effort and may not contain all relevant measurements. 5G NSA support is carrier-dependent, generally based on SSB and the availability of SIB1 data within the 5G band.

Downloads

Data Sheet

Buy Now

Find out where you can buy a CEL-FI COMPASS XR in your region.
