Coaxial Cable Assembly

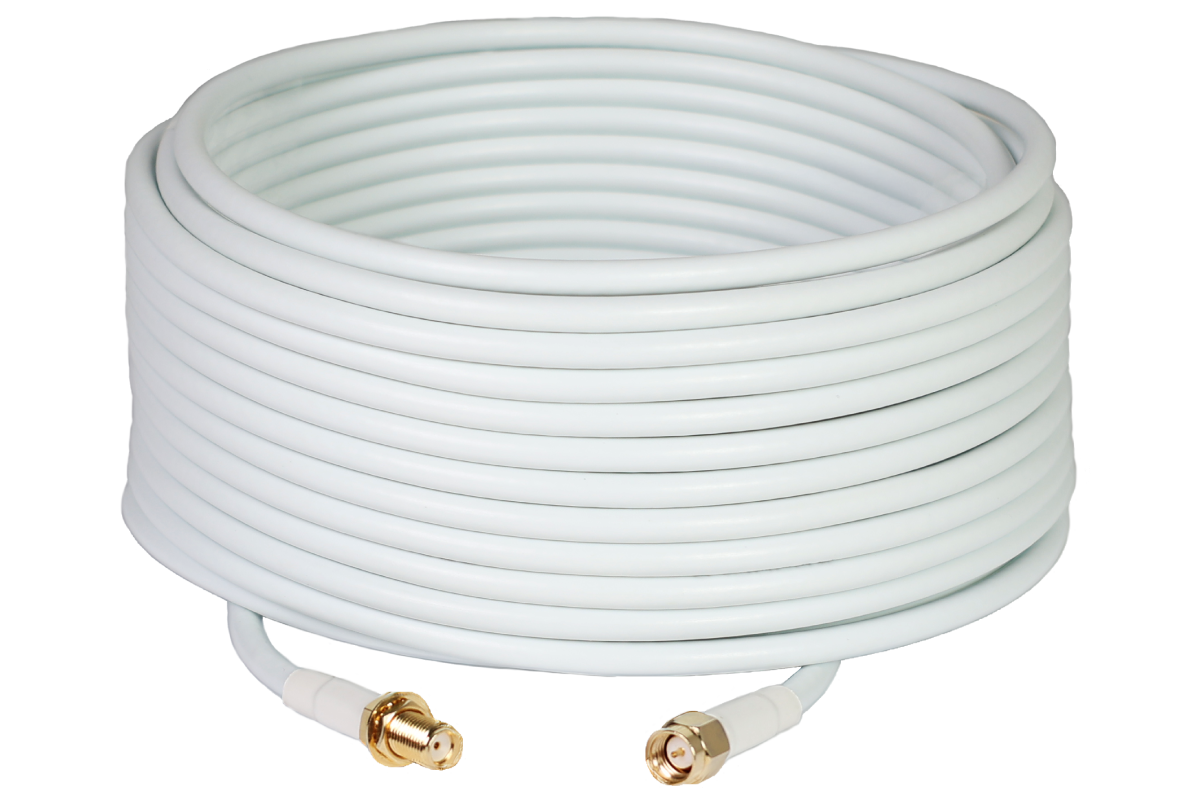

Nextivity C200 coaxial cable assemblies with RG58, LMR195, and LMR240 cable types provide reliable in-building signal transmission to donor and server antennas for CEL-FI GO G41, CONNECT C41 and GO G51 systems. Designed with a solid copper core and braided copper shield, C200 coaxial cable assemblies are ideal when routing cables in tight spaces with the flexibility of RG58 plus the superior shielding and lower loss features of LMR195 and LMR240 cable types. These cable assemblies are terminated with 50-ohm SMA RF connectors at each end and are available in 10 m, 20 m, and 25 m lengths. Use with donor and server antennas having SMA (m) interface.

Features and benefits include:

• Minimal signal attenuation between donor and server antennas while providing cable length extension
• Wideband operation from 617-6000 MHz
• Easy to install with SMA connectors without the need for additional tools
• Ideal for CEL-FI GO G41, CONNECT C41 and GO G51 systems, with support for all CEL-FI products
