CEL-FI PRO

Indoor Smart Signal Booster for 3G, 4G and 4G LTE networks around the world.

Available globally (EXCEPT: Europe/UK/Ireland)

Simply plug it in to boost indoor cellular coverage

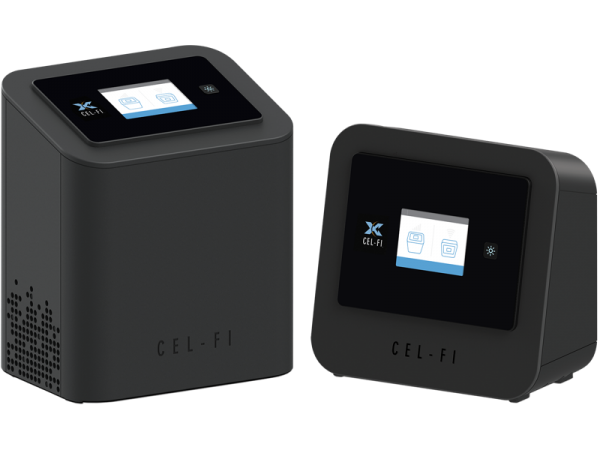

CEL-FI PRO improves 3G, 4G, and LTE cellular service by eliminating dead zones and dropped calls. With 100 dB of gain, the PRO will not only improve cellular service across four (4) concurrent bands, it will also reduce your cell phone’s power requirements and extend its battery life. CEL-FI PRO covers up to 13,000 ft2 (1,200 m2) of indoor space per system. The system features an LCD color interface, is fully self-contained and self-configuring, and requires no external antennas or wiring. Simply plug it in to boost indoor cellular coverage.
CEL-FI PRO is CE and FCC approved. It has been approved by numerous mobile operators and regulatory bodies and is shipping globally.
CEL-FI PRO EXA variants feature an external antenna connector. An external Donor antenna can therefore acquire an outside signal, allowing it to be used in applications where no indoor signal is present (i.e. cement, metal walls, etc.). This enables cellular coverage in hard to reach places by allowing the Network Unit to be placed where no service exists. This opens up new opportunities for using CEL-FI PRO when other solutions fail.
Move the CU further away from the NU to maximize coverage.
The total coverage area equals twice the distance between the NU and the CU. The maximum distance is up to 100 dB path loss.

Get setup in 4 easy steps

1. Find the best cellular signal
Use your phone to find the best cellular signal. Typically you will get the best signal near a window.
2. Place the Network Unit
Place the Network Unit (NU) in the location where you get the best cellular signal.
3. Place the Coverage Unit
Place the Coverage Unit (CU) in the location where you need improved coverage.
4. Use app to optimize setup

Using the CEL-FI WAVE app, finish setup and activation.

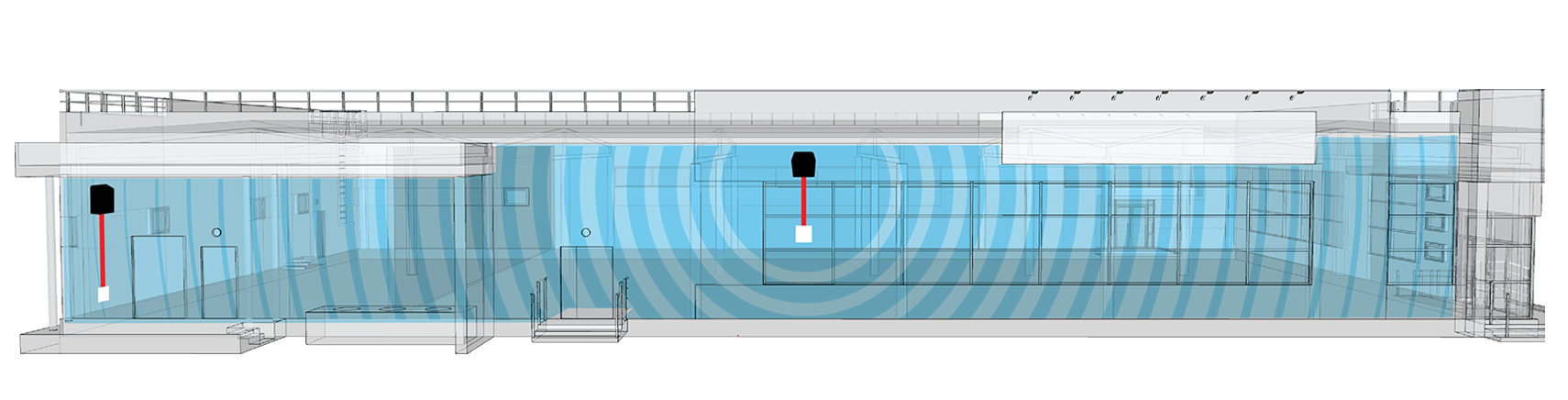

Sample Layouts

One Level
Two Level

Coverage in Difficult Areas

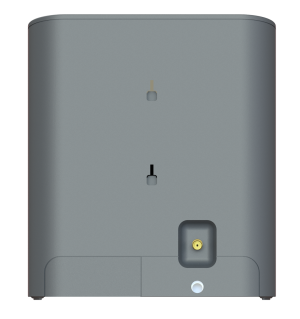

CEL-FI PRO EXA variants feature an external antenna connector on the Network Unit (NU) to enable the use of an external Donor antenna. A PRO EXA with an external Donor antenna can thereby acquire an outside signal, allowing it to be used in applications where no signal is present indoors (i.e. cement, metal walls, etc.). This opens up new opportunities for using CEL-FI PRO Smart Boosters when other solutions fail. The EXA enables cellular coverage in hard to reach places by allowing the CEL-FI Network Unit to be placed, where no service exists.

Tech Specs

Configurations

All systems are reconfigured to specific carriers

Bands 1/3, 1/7, 1/8, 1/3/7, 1/3/8, 1/3/7/8, 1/3/8/20, 1/7/8/20, 2/5, 2/4/5/12, 1/3/5/28, or 3/5/28

Certifications

CE, FEE, RoHS, IC, EAC, R&TTE & EN

Power Consumption

Full uplink:
• 30 Watts
Idle:
• <20 Watts

Electrical & Environmental Requirements

12 VDC
-25 to 60 Celsius

Physical Specification

Network Unit
• 179 x 155 x 110mm (540g)
Coverage Unit
• 160 x 164 x 70mm (450g)

Model Numbers

PRO Systems:
P34-0/3/5/28
P34-1/0/0/8
P34-1/0/7/0
P34-1/3/0/0
P34-1/3/0/8
P34-1/3/5/28
P34-1/3/7/0
P34-1/3/7/8
P34-1/3/8/20
P34-1/7/8/20
P34-2/0/5/0
P34-2/4/5/12

PRO with EXA:
P34-0/3/5/28_EXA
P34-1/0/0/8_EXA
P34-1/0/7/0_EXA
P34-1/3/0/0_EXA
P34-1/3/0/8_EXA
P34-1/3/5/28_EXA
P34-1/3/7/0_EXA
P34-1/3/7/8_EXA
P34-1/3/8/20_EXA
P34-1/7/8/20_EXA
P34-2/0/5/0_EXA
P34-2/4/5/12_EXA
P34-2/5/0/66_EXA

Buy Now

Find out where you can buy a CEL-FI PRO in your region.
