Single Level Solution
This configuration is a single-level solution with 100 dB gain and coverage up to 10,000 ft2.
* The CEL-FI LPDA-R Antenna can be used as an alternate donor antenna option.
** Use a CEL-FI Indoor Omni Antenna for ceiling mounts or a CEL-FI Wideband Panel Antenna for wall mounts.
Two Level Solution
This configuration is a two-level solution with 100 dB gain and coverage up to 15,000 ft2.
* The CEL-FI LPDA-R Antenna can be used as an alternate donor antenna option.
** Use a CEL-FI Indoor Omni Antenna for ceiling mounts or a CEL-FI Wideband Panel Antenna for wall mounts.
Multi Level Solution
This configuration is a multi-level solution requiring 2 CEL-FI GO G32 boosters and coverage up to 30,000 ft2.
* Use a CEL-FI Indoor Omni Antenna for ceiling mounts or a CEL-FI Wideband Panel Antenna for wall mounts.
Vehicle Kit
The GO G32 Vehicle solution includes the CEL-FI Mobile Donor Antenna and CEL-FI Mobile Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain.
Trucker Kit
The CEL-FI GO G32 Trucker solution includes the CEL-FI Trucker Antenna and CEL-FI Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain in mobile mode and 100 dB gain in stationary, the CEL-FI GO G32 Trucker is an ideal solution for cross country trucking or remote RV stays.
Marine Kit
The CEL-FI GO G32 Marine solution includes the CEL-FI Marine Antenna and CEL-FI Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain in mobile mode and 100 dB gain in stationary, the CEL-FI GO G32 Marine is an ideal solution for near shore or brown water recreational, ferrying or shipping vessels.
RV Kit
The CEL-FI GO G32 RV solution includes the CEL-FI Trucker Antenna and CEL-FI Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain in mobile mode and 100 dB gain in stationary, the CEL-FI GO G32 RV is an ideal solution for cross country trips or remote RV stays.
QUATRA Network Unit (NU)
CEL-FI QUATRA Network Unit (NU) is the hub of the system. The scalable design works with 1 to 4 Coverage Units to provide up to 50,000 ft2 (5,000 m2) of coverage.
QUATRA Coverage Unit (NU)
CEL-FI QUATRA Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power-Over-Ethernet (POE) for up to four CUs.
QUATRA Small Cell Interface
A Small Cell Interface (SCIF) may be used as the donor source for the CEL-FI QUATRA. The SCIF simplifies RF connections between a small cell and Network Units. It includes a main unit and all cables for a single NU.
QUATRA Range Extender
The CEL-FI QUATRA Range Extender (QRE) is a Power over Ethernet (PoE) device that extends the maximum distance between the CEL-FI QUATRA Network Unit and the Coverage Unit.
QUATRA 4000 Network Unit
The Network Unit (NU) is the hub of the system. The scalable design works with one to six Coverage Units to provide up to 75,000 ft2 (7,000 m2) of coverage.
QUATRA 4000 Coverage Unit
The Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power-Over-Ethernet (POE) for up to six CUs.
QUATRA 4000 Fiber Hub
CEL-FI QUATRA 4000 Fiber Hub expands the Network Unit capacity from six to up to twelve Coverage Units. The fiber hub can be installed 2.0km (1.24m) away from the NU to cover large spaces while maintaining the same signal quality throughout the system.
QUATRA Network Unit (NU)
CEL-FI QUATRA Network Unit (NU) is the hub of the system. The scalable design works with 1 to 4 Coverage Units to provide up to 50,000 ft2 (5,000 m2) of coverage.
QUATRA Coverage Unit (NU)
CEL-FI QUATRA Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power-Over-Ethernet (POE) for up to four CUs.
QUATRA Small Cell Interface
A Small Cell Interface (SCIF) may be used as the donor source for the CEL-FI QUATRA. The SCIF simplifies RF connections between a small cell and Network Units. It includes a main unit and all cables for a single NU.
QUATRA Range Extender
The CEL-FI QUATRA Range Extender (QRE) is a Power over Ethernet (PoE) device that extends the maximum distance between the CEL-FI QUATRA Network Unit and the Coverage Unit.
FirstNet Signal Booster
Emergency Response Cellular Solution
ERRCS Public Safety Solution
DAS and BDA Configurations

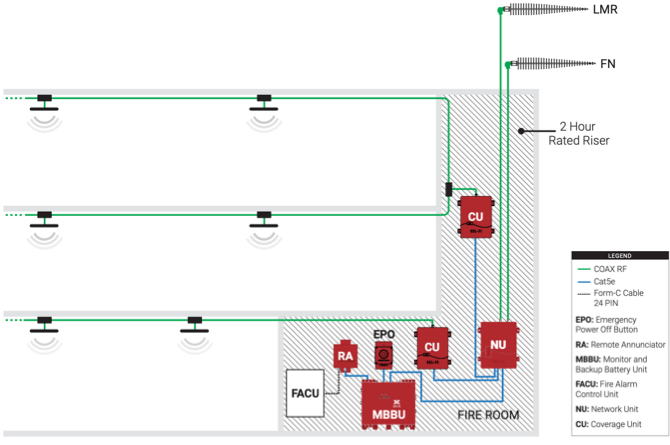

QUATRA RED Monitor & Battery Backup Unit
The Monitor and Battery Backup Unit (MBBU) is the central point of the CEL-FI QUATRA RED system. It provides constant direct current, alarming, monitoring and battery charging capabilities. Integrates a wireless LTE modem and a wired Ethernet port for remote access to all the components via the CEL-FI WAVE Portal or the WAVE PRO app. The system is NEMA 4 rated and listed to UL2524. Two versions are available to optimize power requirements and installation costs.
QUATRA RED Remote Annunciator Panel
The CEL-FI QUATRA RED Remote Annunciator Panel provides automatic supervisory signals for malfunctions of the ERRCS solution. Rated NEMA 4, it complies with Chapter 10 of NFPA 72 and section 9.6.13 of NFPA 1221. The PoE architecture allows for a quick installation and alarm configuration. The unit includes a FORM-C cable compatible with any fire alarm control panel (open or short circuits).
QUATRA RED Emergency Power-off Switch
CEL-FI’s QUATRA RED Emergency Power Off Switch (EPO) can instantaneously shut down the ERRCS solution from a single point to eliminate the risk of combustion caused by electricity or static. Designed to prevent inadvertent operation and can be installed in any location designated by the authority having jurisdiction.
QUATRA RED Network Unit
The Network Unit (NU) processes FirstNet and LMR off-air signals digitally to provide reliable and interference-free coverage. PoE based architecture and CEL-FI patented algorithms for automatic setting of uplink and downlink gain, reduces time and cost of installation significantly, making CEL-FI QUATRA RED the most compelling public safety solution in the market.
QUATRA RED Coverage Unit
The Coverage Unit (CU) amplifies FirstNet and LMR signals up to 24 dBm and 30 dBm output power. The ease of installation plus the SelfOrganizing Edge Intelligence makes CEL-FI’s QUATRA RED the most compelling solution in the market.
QUATRA RED Active Server Antenna
The CEL-FI QUATRA RED Server Antenna is an active multi-frequency, omni-directional antenna ideal for Public-Safety applications requiring monitoring capabilities at the component level. Designed for hard cap and false ceilings. It features an N-type female connector and rugged IP20 grade electronics.
