T-Mobile Partner Portal
CEL-FI’s most advanced coverage solutions available for use on the T-Mobile Network.
The CEL-FI product line is…
The best solution available on the market for addressing the universal challenge of poor cellular coverage in the office, at home, or on the road. Exceptional coverage footprint. Unconditionally network safe. Approved by T-Mobile for voice and data over 3G, 4G and 5G.
Leaders in Performance
Leaders in Value
Easy Install
Fast Setup
Carrier Approved
Products for use on the T-Mobile Network
CEL-FI
GO G32
Small Business and Residential
CEL-FI
DUO+
Plug & Play Coverage Solution
- Cellular Coverage: 5k to 15k ft2(per unit)
- Voice and Data: Carrier-Grade up to 100 dB max system gain
- Carrier Options: Verizon, T-Mobile, and US Cellular
- Easy Setup: 15 min Install with WAVE App
- Customize: Use the WAVE app to control the setup
CEL-FI
GO G32 In-building Kits
- Cellular Coverage: 5k to 15k ft2 (per unit)
- Voice and Data: Carrier-Grade up to 100 dB max system gain
- Carrier Switchable: AT&T, Verizon, T-Mobile, Sprint, and US Cellular
- Customize: Use the WAVE app to control the setup
- Antenna Options: Single or Multi Omni Server Antenna
- Unit Options: Single and Multiple units
Single Level Solution
This configuration is a single-level solution with 100 dB gain and coverage up to 10,000 ft2.
- CEL-FI GO G32
- CEL-FI Wideband Directional Antenna *
- CEL-FI Indoor Omni Antenna **
- CEL-FI Wideband Panel Antennas **
- CEL-FI C200-195-20 Coaxial Cable
* The CEL-FI LPDA-R Antenna can be used as an alternate donor antenna option.
** Use a CEL-FI Indoor Omni Antenna for ceiling mounts or a CEL-FI Wideband Panel Antenna for wall mounts.
Two Level Solution
This configuration is a two-level solution with 100 dB gain and coverage up to 15,000 ft2.
- CEL-FI GO G32
- CEL-FI Wideband Directional Antenna
- 2 x CEL-FI Indoor Omni Antennas *
- 2 x CEL-FI Wideband Panel Antennas *
- CEL-FI C200-195-20 Coaxial Cable
* The CEL-FI LPDA-R Antenna can be used as an alternate donor antenna option.
** Use a CEL-FI Indoor Omni Antenna for ceiling mounts or a CEL-FI Wideband Panel Antenna for wall mounts.
Multi Level Solution
This configuration is a multi-level solution requiring 2 CEL-FI GO G32 boosters and coverage up to 30,000 ft2.
- 2 x CEL-FI GO G32
- CEL-FI Wideband Directional Antenna (alternate is CEL-FI LPDA-R Antenna)
- 4 x CEL-FI Indoor Omni Antennas *
- 4 x CEL-FI Wideband Panel Antennas *
- CEL-FI C200-195-20 Coaxial Cable
* Use a CEL-FI Indoor Omni Antenna for ceiling mounts or a CEL-FI Wideband Panel Antenna for wall mounts.
Vehicle and Marine
CEL-FI
GO G32 Mobile Kits
Mobile Cellular Coverage Solutions
- Coverage Solutions for Vehicles, RVs, Truckers, and Marine
- Up to 65 dB max system gain in Mobile Mode
- Carrier Switchable: AT&T, Verizon, T-Mobile, Sprint, and US Cellular
- Simple installation with the innovative WAVE app
Vehicle Kit
The GO G32 Vehicle solution includes the CEL-FI Mobile Donor Antenna and CEL-FI Mobile Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain.
- CEL-FI GO G32
- CEL-FI Mobile Donor Antenna
- CEL-FI Mobile Server Antenna

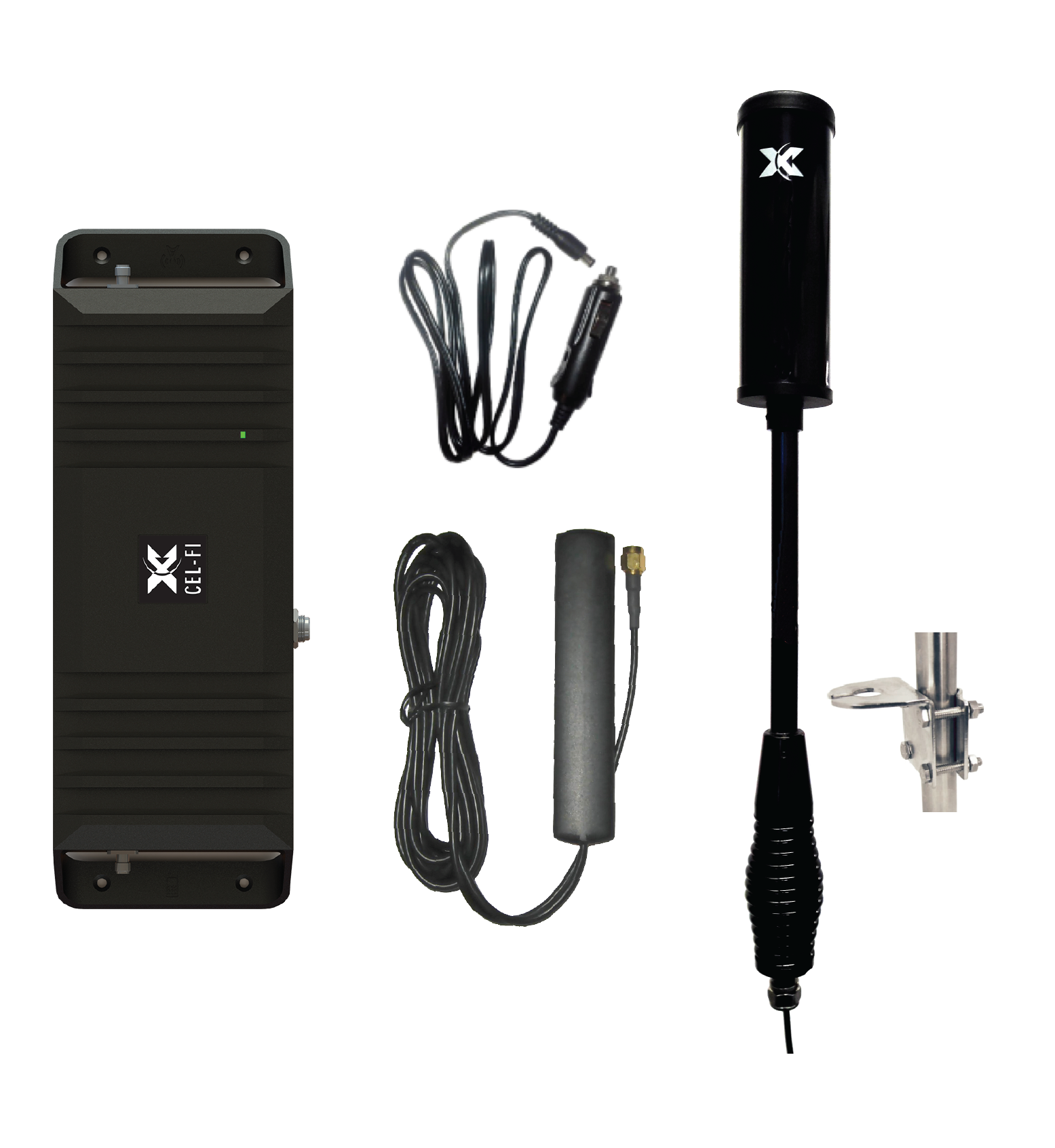

Trucker Kit
The CEL-FI GO G32 Trucker solution includes the CEL-FI Trucker Antenna and CEL-FI Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain in mobile mode and 100 dB gain in stationary, the CEL-FI GO G32 Trucker is an ideal solution for cross country trucking or remote RV stays.
- CEL-FI GO G32
- CEL-FI Trucker Antenna
- CEL-FI Mobile Server Antenna
Marine Kit
The CEL-FI GO G32 Marine solution includes the CEL-FI Marine Antenna and CEL-FI Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain in mobile mode and 100 dB gain in stationary, the CEL-FI GO G32 Marine is an ideal solution for near shore or brown water recreational, ferrying or shipping vessels.
- CEL-FI GO G32
- CEL-FI Marine Antenna
- CEL-FI Mobile Server Antenna
RV Kit
The CEL-FI GO G32 RV solution includes the CEL-FI Trucker Antenna and CEL-FI Server Antenna. Multi-user and multi-carrier support, plus easy carrier-switching available through the CEL-FI WAVE app. With an industry leading 70 dB gain in mobile mode and 100 dB gain in stationary, the CEL-FI GO G32 RV is an ideal solution for cross country trips or remote RV stays.
- CEL-FI GO G32
- CEL-FI Trucker Antenna
- CEL-FI Mobile Server Antenna

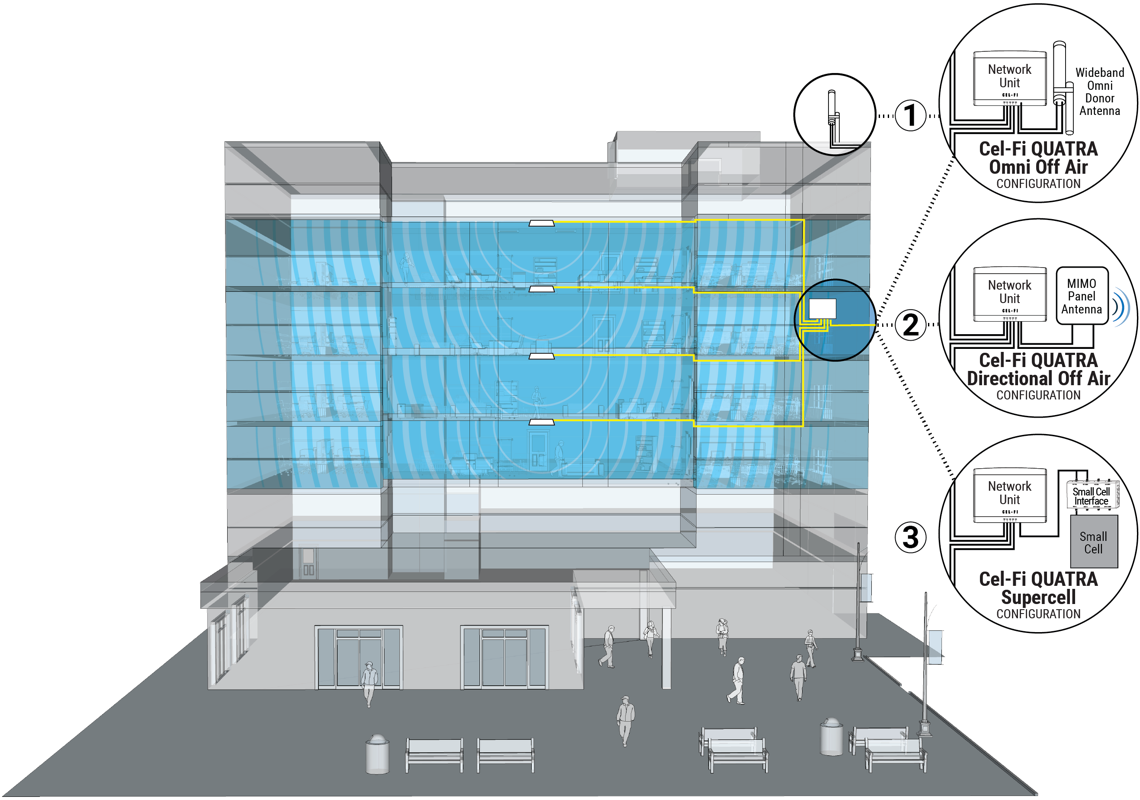

Enterprise
CEL-FI
QUATRA 1000
Cellular Coverage Solution
- Scalable: Up to 50,000 ft2 per Network Unit
- Carrier Grade: Up to 100 dB gain for voice and data
- Dual Mode: Supercell or Off-Air mode
- All Digital: Category Cable PoE/RFoE Solution
- Network Safe: Single of Multi-Carrier available
QUATRA Network Unit (NU)
CEL-FI QUATRA Network Unit (NU) is the hub of the system. The scalable design works with 1 to 4 Coverage Units to provide up to 50,000 ft2 (5,000 m2) of coverage.
QUATRA Coverage Unit (NU)
CEL-FI QUATRA Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power-Over-Ethernet (POE) for up to four CUs.
QUATRA Small Cell Interface
A Small Cell Interface (SCIF) may be used as the donor source for the CEL-FI QUATRA. The SCIF simplifies RF connections between a small cell and Network Units. It includes a main unit and all cables for a single NU.
QUATRA Range Extender
The CEL-FI QUATRA Range Extender (QRE) is a Power over Ethernet (PoE) device that extends the maximum distance between the CEL-FI QUATRA Network Unit and the Coverage Unit.
CEL-FI
QUATRA 4000/4000i
- Scalable: Up to 50,000 ft2 per Network Unit
- Carrier Grade: Up to 100 dB gain for voice and data
- Dual Mode: Supercell or Off-Air mode
- All Digital: Category Cable PoE/RFoE Solution
- Network Safe: Single of Multi-Carrier available
QUATRA 4000 Network Unit
The Network Unit (NU) is the hub of the system. The scalable design works with one to six Coverage Units to provide up to 75,000 ft2 (7,000 m2) of coverage.
- Provides donor signal to the CEL-FI QUATRA 4000 system
- Provides power to Coverage Units (up to six)
- Connects via ethernet or LTE Modem to the CEL-FI WAVE Platform for remote monitoring and management

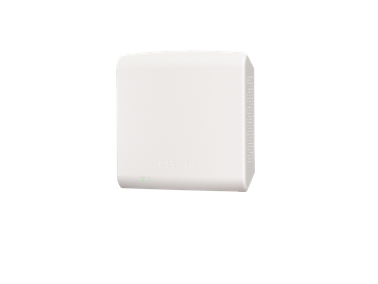

QUATRA 4000 Coverage Unit
The Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power-Over-Ethernet (POE) for up to six CUs.
- Provides coverage in the CEL-FI QUATRA system (up to six per Network Unit)
- Power delivered by Power-Over-Ethernet from the Network Unit
- Self-configuring and self-optimizing
- CEL-FI QUATRA 4000 CU is only compatible with CEL-FI QUATRA 4000 NU
QUATRA 4000 Fiber Hub
CEL-FI QUATRA 4000 Fiber Hub expands the Network Unit capacity from six to up to twelve Coverage Units. The fiber hub can be installed 2.0km (1.24m) away from the NU to cover large spaces while maintaining the same signal quality throughout the system.
- Multi-carrier Hybrid Active DAS
- Donor source over fiber
- FCC certified
- SFP+ module not included
