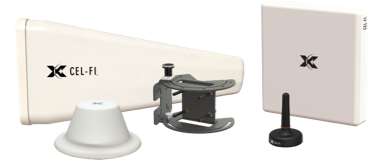

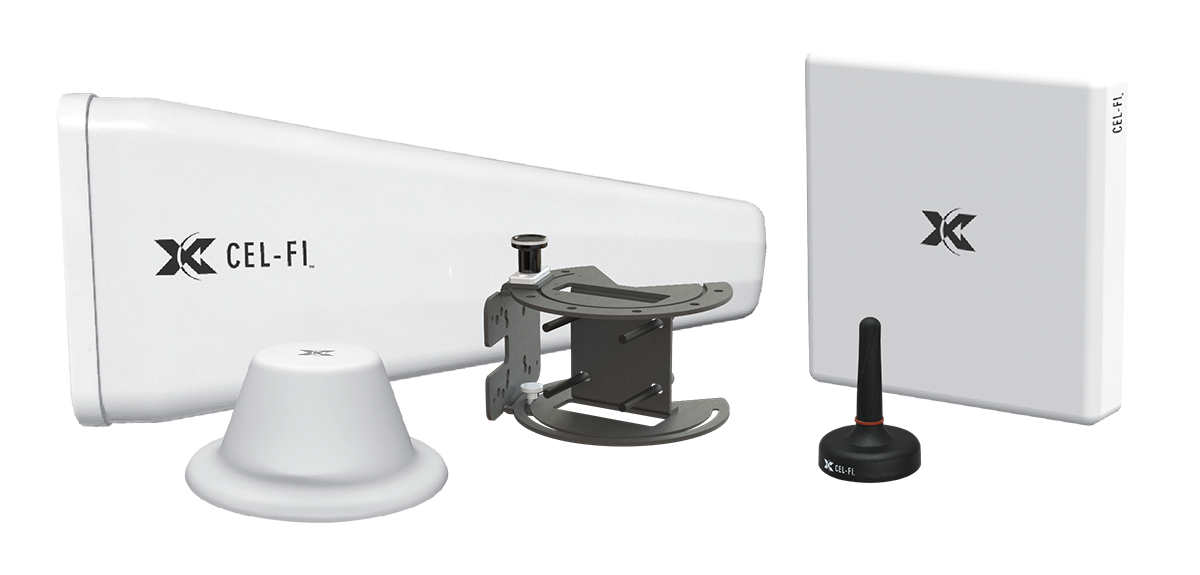

Cel-Fi Antennas, Mounts & Accessories

Our Cel-Fi Antennas have been carefully selected to optimize quality and footprint for your desired solutions. All antennas have been tested and qualified to work with Cel-Fi boosters, and work in conjunction with Cel-Fi Mounts and the Cel-Fi WAVE Application to make installation easier.

Cel-Fi Wideband MIMO Panel Antenna

Model Number: A52-x12-100

The Cel-Fi MIMO Panel Antenna is the only authorized indoor/outdoor antenna for Cel-Fi QUATRA.

Cel-Fi AntennaBoost integrates the Cel-Fi MIMO Panel Antenna with the Cel-Fi WAVE Platform to provide the best donor signal in the industry. The antenna connects to the Cel-Fi QUATRA Network Unit or Coverage Unit with QMA (quick connect) cables. Nextivity’s proprietary 8-position dial base enables the antenna to be rotated in 45-degree increments for best performance, managed with real-time data from the Cel-Fi WAVE Platform Antenna Position Test.

- MIMO (LTE)
- Dual polarization (vertical/horizontal) design
- QMA quick-release connector
- Wideband coverage (700 – 2700MHz)
- Low VSWR
- Aesthetically pleasing, low profile housing

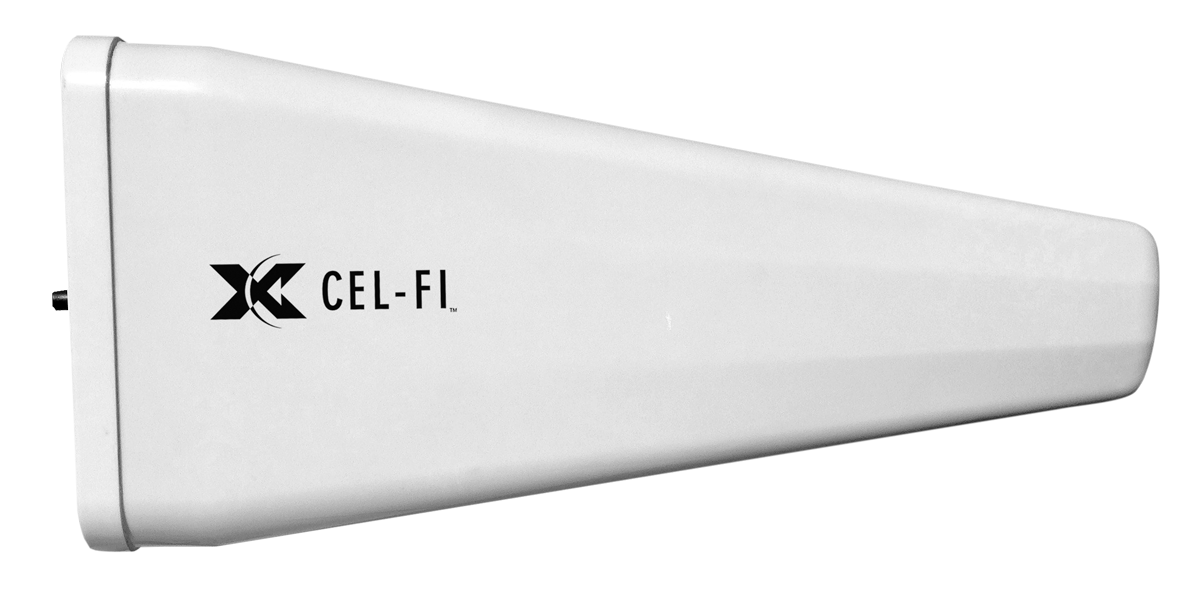

Cel-Fi Wideband Directional Antenna

Model Number: A32-V32-200 / A32-V32-201

The Cel-Fi Wideband Directional Antenna is an outdoor vertically polarized highly directional antenna for Cellular Boosters; with 10 dB gain in the low bands and 11 dB gain in the high bands. The weather resistant housing is built with UV stabilized ABS plastic casing. Optimized for Cel-Fi products, the Cel-Fi Wideband Directional Antenna works great with the Cel-Fi WAVE Antenna positioning app. The unit includes standard brackets for mounting, and can also be used with the Cel-Fi Pole Mount.

- Boosts Cell Signal by up to 11 dBi
- 700 – 2700 MHz Frequency
- Vertical Polarization
- Uni-Directional

Cel-Fi Wideband Panel Antenna

Model Number: A52-V32-100

The Cel-Fi Wideband Panel Antenna is an indoor/outdoor cellular wideband directional antenna with 6 dB gain in the low bands and 10 dB gain in the high bands. The weather resistant housing is built with UV stabilized ABS plastic. Optimized for Cel-Fi products, the Cel-Fi Wideband Panel Antenna can be used with the Cel-Fi WAVE Antenna positioning app. The unit includes standard brackets for wall mounting or can be used with any Cel-Fi Mount.

- Boosts Cell Signal by up to 9 dBi
- 700 – 2700 MHz Frequency
- Vertical Polarization
- Directional

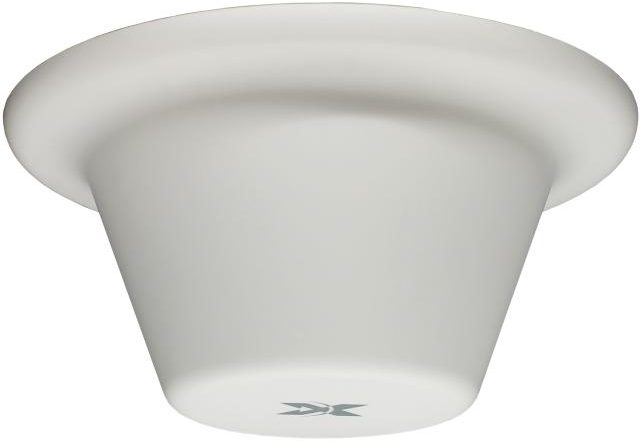

Cel-Fi Indoor Omni Antenna

Model Number: A11-V43-121

The Indoor Omni Antenna receives and transmits signal in a 360° pattern and are compatible with the 698 – 2700 MHz frequency ranges that include 3G, 4G and 5G signals. They come with an N-type Female Connector.

3G/4G/5G wideband cellular antenna
N-type Female Connector
Omni-directional

Cel-Fi Wideband Omni Donor Antenna

Model Number: A11-V14-100

The Cel-Fi Wideband Omni Donor Antenna is the ideal donor signal source for the QUATRA 2000. It has N-type Female connectors. The Cel-Fi Omni Donor Antenna is the only authorized indoor/outdoor antenna for Cel-Fi QUATRA 2000 Off-Air solutions only.

- Wideband Omni antenna
- Dual feeds (MIMO)
- Includes pole mounting options
- Designed for QUATRA 2000 off-air installation

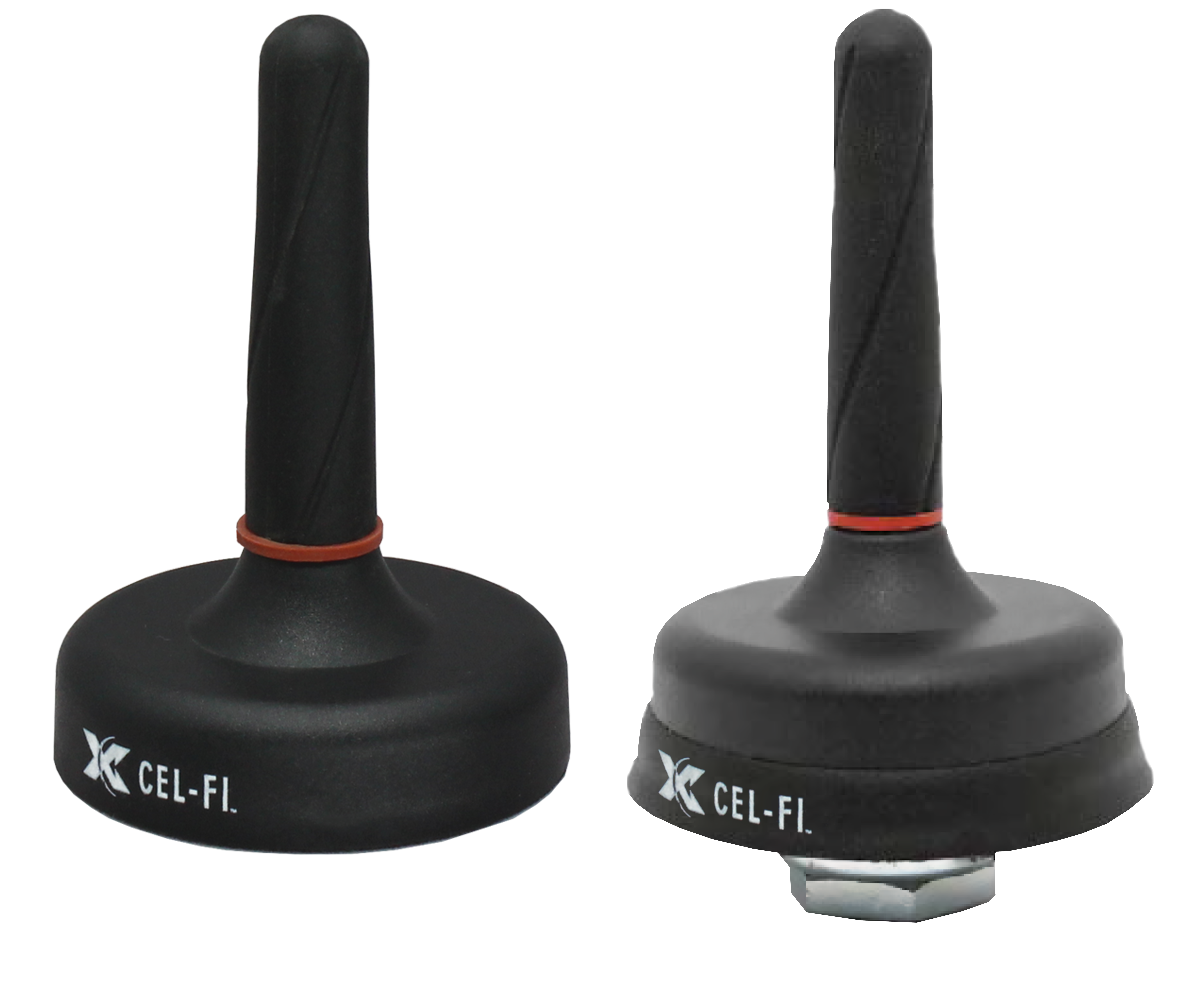

Cel-Fi Mobile Donor Antennas

Magnetic Mount Models:

- A41-V21-100 for North America and Australia (tuned to 700 MHz LTE)
- A41-V21-101 for EMEA (tuned to 800MHz LTE)

Screw Mount Models:

- A41-V36-200 for North America and Australia (tuned to 700 MHz LTE)
- A41-V36-201 for EMEA (tuned to 800MHz LTE)

The Mount and Screw Mount Antennas are two of the best-performing antennas in their footprint on the market. These antennas are outdoor wideband cellular omnidirectional antennas with up to 4 dB gain. The weather resistant IP67 plastic casings are built to securely attach to autos, trucks, vans, SUVs, and RVs.

- 3G/4G/5G wideband cellular antenna
- SMA Male connector
- Omni-directional
- 3m low loss high-performance cable
- Ground plane dependent

Cel-Fi Mobile Server Antenna

Model Number: A41-V30-100

The Cel-Fi Mobile Server Antenna is a cellular / LTE patch antenna that creates a large coverage area, optimized for Cel-Fi GO products. The Cel-Fi Mobile Server Antenna has an adhesive mount for ease of installation.

Cel-Fi Whip Antenna

Model Number: A21-V33-100

The Cel-Fi Whip Antenna is designed to distribute enhanced cellular signal from cellular boosters in indoor or outdoor applications. With a standard SMA connector, and right-angle pivoting joint, the Cel-Fi Whip Antenna can be used with Cel-Fi GO, PRO, or DUO.

- 3G/4G/5G wideband cellular antenna
- Paddle (blade) style dipole
- Right-angle pivoting knuckle
- SMA Male connector

Cel-Fi Marine Antenna

Model Number: A1-V37-100

Cel-Fi Marine Antenna will collect the cell tower signal and send it through the cable to a Signal Booster. And it works in the other direction, when the cell phone transmits, the signal is transferred to a Signal Booster and transmitted back to the cell tower.

- High-performance, omni-directional antenna
- Threaded ferrule/post for side or bottom cable exit
- Weather resistant
- Built-in ground plane
- For marine application
- Easy installation

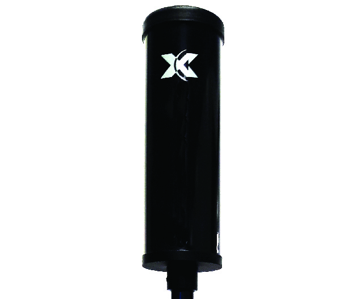

Cel-Fi Trucker Antenna

Model Number: A21-V31-100

The Cel-Fi Trucker Antenna was developed to offer a high-performance wideband antenna option for over-the-road (OTR) users.The product features a heavy-duty spring base and includes a mirror-mount for easy installation.

Cel-Fi LPDA-R Antenna

Model Number: A62-V44-200

The Cel-Fi LPDA-R Antenna offers a powerful 12 to 14 dBi gain (depending on carrier frequency) over 617–4000 MHz and is designed to reduce out of band noise, to improve SiNR and overall signal quality. Mounting is made simple with included U-Bolts. This Cel-Fi product also features a 10K ohm resistor that enables the antenna connection to be validated by Cel-Fi Network Units equipped with the capability.

- 12–14 dBi gain
- Narrow beam-width to reduce noise
- Rugged construction for harsh environments

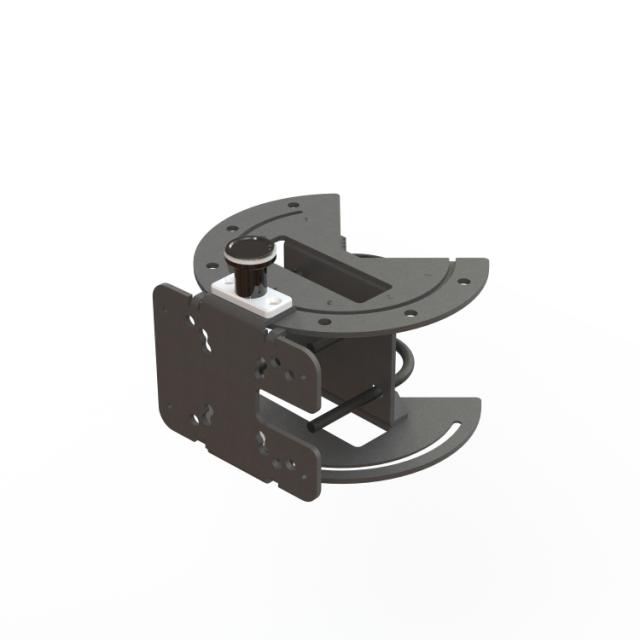

Cel-Fi Antenna Mount:

Model Number: F66-100

The Cel-Fi Mount is an indoor/outdoor mount designed to secure a donor signal for Cel-Fi QUATRA and work with the Cel-Fi WAVE Antenna Positioning feature. Cel-Fi’s proprietary 8-position dial base enables the antenna to be rotated in 45-degree increments, with real time performance data.

26 cm powder-coated pole
Stamped metal surface
Indoor/Outdoor
Supports pole/ceiling/wall application
Supports 8-position with locking screw
Flexible hole pattern for multiple mount types

Cel-Fi QUATRA Small Cell Interface:

Model Number: QRE-SCI
Physical Specification: 175mm (W) x 85mm (H) x 25mm (D) (196gm)

A Small Cell Interface (SCIF) may be used as the donor source for the Cel-Fi QUATRA. The SCIF simplifies RF connections between a small cell and Network Units. It includes a main unit and all cables for a single NU.

- - Simplifies connections to a small cell
  - Provides proper signal attenuation and isolation
  - Required for small cell Installation
  - Designed for QUATRA 1000 small cell installation

Cel-Fi QUATRA Range Extender

Model Number: Q34-E1000
Physical Specification: 140mm (L) x 66mm (W) x 28mm (H) (0.7kg)

The Cel-Fi QUATRA Range Extender (QRE) is a Power over Ethernet (PoE) device that extends the maximum distance between the Cel-Fi QUATRA Network Unit and the Coverage Unit.

- - Allows NU-to-CU cable lengths of up to 650 ft (200 m)
  - Power over Ethernet (no separate power supply or PoE injector needed)

Cel-Fi QUATRA Adapter and Pigtail Kit

Model Number:
D12-20114-2002-K (Adapter and Pigtail Kit)
D12-20114-2002 (Individual Pigtail – Sold Individually)
B12-92050-0100 (Individual Adapter – Sold Individually)

The Cel-Fi QUATRA Range Extender (QRE) is a Power over Ethernet (PoE) device that extends the maximum distance between the Cel-Fi QUATRA Network Unit and the Coverage Unit.
